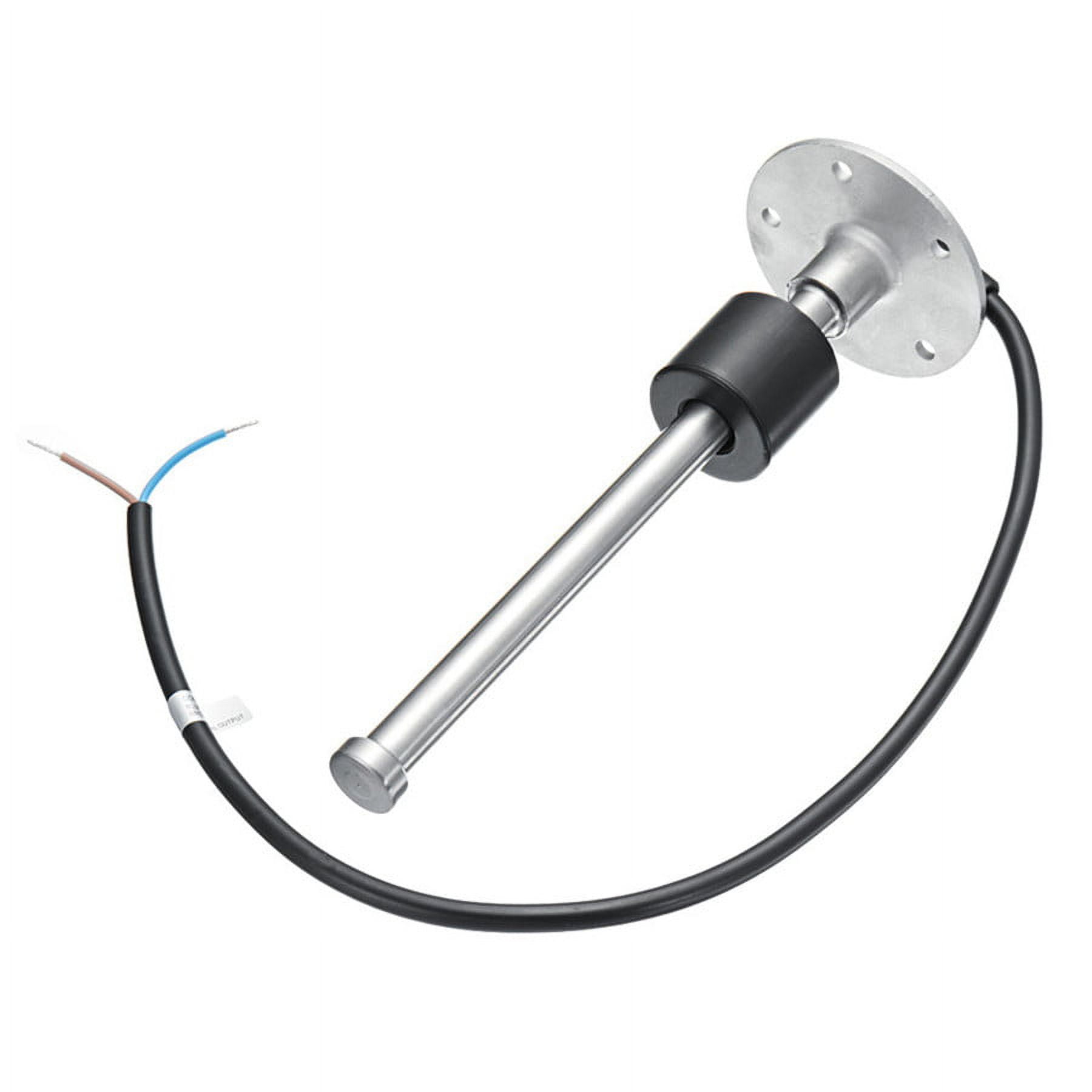

HOT ! 超話題新作 Amazon.com: 220-33 Sensor Level Water Fuel Elbow 90° ZCBYBT Hardware

• Rated Power: 125mW Output Signal: 220-33Ω Accuracy Range: 10 ~ 40mm Working Temperature: -40 ℃ ~ + 85 ℃
• The sensor body is made of stainless steel for long life, stable output signal and accurate measurement. Suitable for gasoline, diesel, water etc
• Whether it's a ship, car, truck, trailer or bus, our fuel level sensor will meet the different needs of each sector and ensure a reliable level of monitoring
• Features SAE standard 5-hole installation and includes screws, washers, heat shrink terminals and installation wiring instructions for quick and easy installation. No more worrying about undetected liquids affecting your travel or sailing plan
• Note: In addition to adjacent sides or baffles of the tank, you must maintain a 25mm gap between the bottom of the tank and the float retention ring

Specifications
Material: SUS304 stainless steel.
Alarm Switch Rated Current: 500mA
Rated Power: 125 mW
Output signal: 0 ~ 190Ω
Precision Range: 0.4 - 1.6 inches (10 - 40 mm)
Operating temperature: -40 ℃ ~ + 85 ℃
Assembly Method: SAE Standard 5 Hole
Protection level: IP67

Package included
1 x Oil Level Sensor

Note
This product is equipped with 5 M5 thread and 2mm thick NBR gaskets. For use with gas tanks, we recommend using 2mm FPM gaskets.
