• Compatible Hose: 3/4"
• Dimensions L: 3.3 inches (84 mm)
• Dimensions Dmax. (φ): 1.8 inches (45 mm)
• Dimensions d1 (φ): 0.8 inches (21 mm)
• Dimensions d2 (φ): 0.6 inch (15 mm)
• Weight: 11.8 oz (315 g)

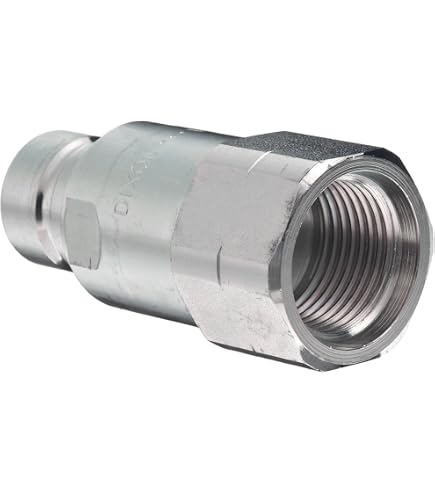

Two-way open coupling that does not have a valve mechanism on both the socket and the plug side. Ideal for plumbing lines where fluids do not need to be cut off when sockets and plugs are separated.
Internal structure with low flow resistance reduces pressure loss and is suitable for piping with high viscosity fluids, steam and powder.
Both the socket and plug are for male threading, female threading, and hose connections, so you can mix and match.
Hydraulic Equipment, Hydraulic Plumbing, Water Plumbing, Steam Plumbing, Saltwater Plumbing
Chemical plants, chemicals, high pressure gas piping, etc.
Normal pressure (maximum working pressure): Mpa: TS-2 to TS-4 7.5 (10.0), TS-6 to TS-8 4.5 (6.5).
Usable temperature range: -4 to 5 ft 10 °F (-20 to 180 °C)
Fluids used: alkali, salt water, etc.
Body: Stainless steel (SUS304).
Valve gasket: Fluorine rubber (FPM)
Please note that if the nominal diameter is different, the socket and plug cannot be connected.
When the nominal diameter becomes larger, the pressure resistance will be lower, so please be careful when using.
